Widget & Algorithm Library
66 widget types · 48 industrial algorithm blocks
All drag-and-drop, same source across three ends (designer canvas / simulator / target firmware); properties expressed via a canonical key vocabulary across backends.
Widget library
Six groups, drop onto the canvas and use
Includes a Pinyin IME keyboard (full GB2312 set of 6763 characters, fuzzy pinyin, adjustable candidate size) and six shape primitives (arc-path sweep fill, partial refresh).
Basic widgets
12ButtonLabelImage buttonCheckboxRadioSwitchSliderProgress barDropdownRollerSpinboxButton matrix
Input
6Text boxMultiline inputKeyboardPinyin IME keyboardEmbedded windowMessage box
Containers & Navigation
9GroupPanelTab viewTile viewListMenuTree viewAccordion menuScrollbar
Data Visualization
11ChartGaugeArcRadial sliderRadial progressMeterLine canvasLEDTableCalendarSpinner
Six shape primitives
6RectangleCircleSectorEllipsePolygonArc
Media & Utilities
14AlbumCameraVideo playerAnimated imageGIFLottieQR codeFile browserFile explorerCarouselChat UIMarkdownWiFi signalWiFi fan

Algorithm block library
Four families, 48 industrial blocks
Fixed-point integer parameter storage (engineering value = raw × scale_num / scale_den + bias), descriptor-driven generic decoder, single source of truth + metadata fingerprint check that rejects mismatches.
Motor Control
10FOCSVPWMSensorless SMOSensorless SMCHFI injectionPLLMTPAHall encoderIncremental encoderField weakening
Digital Power
9BuckBoostBuck-BoostBuck-Boost CVCCLLCPFCDOBDPCCOvercurrent protection derating
Motion Control
7G-code parserG-code executorTrajectory planningKinematicsSoft limitFeed overrideGlitch filter
Control & Filtering
9PIDPID feedforwardLADRC 1st/2nd orderEKFRLS adaptiveLow-pass / notch / median / moving averageNTC lookupAdderLimiter / rate limiter

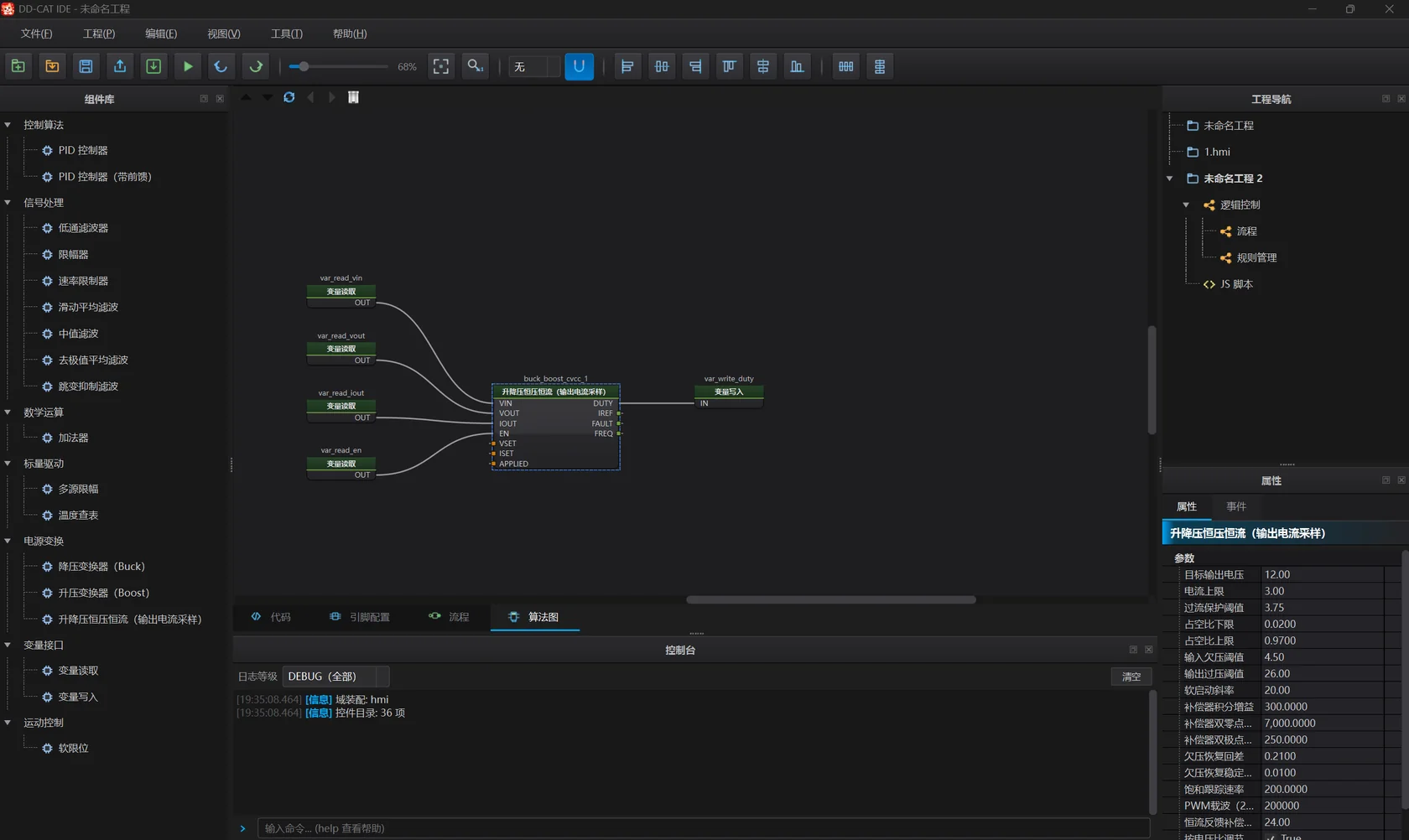

Algorithm graph editor
- · Drag and connect to build graphs; ports negotiate by dtype (same-type / bool↔numeric allowed, i32↔f32 allowed + warning)
- · Parameters are edited only in the lower-right property panel (schema-driven, no popup dialogs)
- · Pre-export validation gate: unknown types / out-of-range parameters / dangling edges = blocked with errors
- · Hardware-decoupled: peripheral interaction via the variable manager; graphs hold pure software algorithms
- · Firmware executes via generic descriptors — it doesn’t know specific algorithms, so new blocks need zero changes
