Desktop designer + target firmware runtime

One widget catalog, one variable semantics, one protocol core — the designer and firmware share the same source. The full feature landscape follows.

Desktop

DD-CAT IDE Designer

A Windows desktop app combining visual UI design, data binding, logic composition, algorithm graphs, simulation debugging, and firmware export.

Project management

  • New project wizard: pick chip / board / display backend; free resolution configuration (incl. round screens)
  • Headless projects: pure control logic, hiding UI editing to focus on variables and algorithms
  • Project and component templates; export auto-filters template metadata

Visual canvas

  • Multi-screen management, asset manager, docked component library
  • Drag-to-place selection, multi-select align/distribute, guides, undo/redo
  • Component grouping (16-layer real container tree) + state styles + Flex layout

Style system

  • Aligned to LVGL v9 style properties: the full key set of background/border/outline/shadow/padding/transform…
  • Gradients (multiple stops), opacity, corner radius, scale-compensated rotation anchors
  • Color/opacity "empty = unset" semantics, identical on hardware and in simulation

Variables & data binding

  • Global variable catalog + sys_* system variable family (same names on both ends)
  • Widget property binding: variable / tinyexpr expression, mutually exclusive
  • UDT structured JSON passthrough; dot-path binding like base.field
  • Rule engine: variable changes trigger actions, with automatic storm muting

Logic & algorithm composition

  • Algorithm graph editor: 48 blocks, drag-and-connect, fixed-point parameters, export validation gate
  • Flow editor: state-machine node composition
  • JS engine: gx.uart/can/spi/i2c bus APIs read and write hardware directly

Simulation & debugging

  • One-click built-in simulator with real widget rendering through the full pipeline
  • Simulation console: sim connect for remote linking, sim vars/set to read/write variables remotely
  • Bus TCP interop: virtual UART/CAN/SPI/I2C bridge to real hardware gateways
  • Comm Inspector: synchronized HID packet capture on both ends

Export & update

  • One-click app package export (MIB1 container .bin) + pre-export validation gate
  • Standalone online updater: one-click check, incremental download, verified install
  • Chinese/English bilingual UI (full i18n)
  • Import SquareLine (.spj) projects

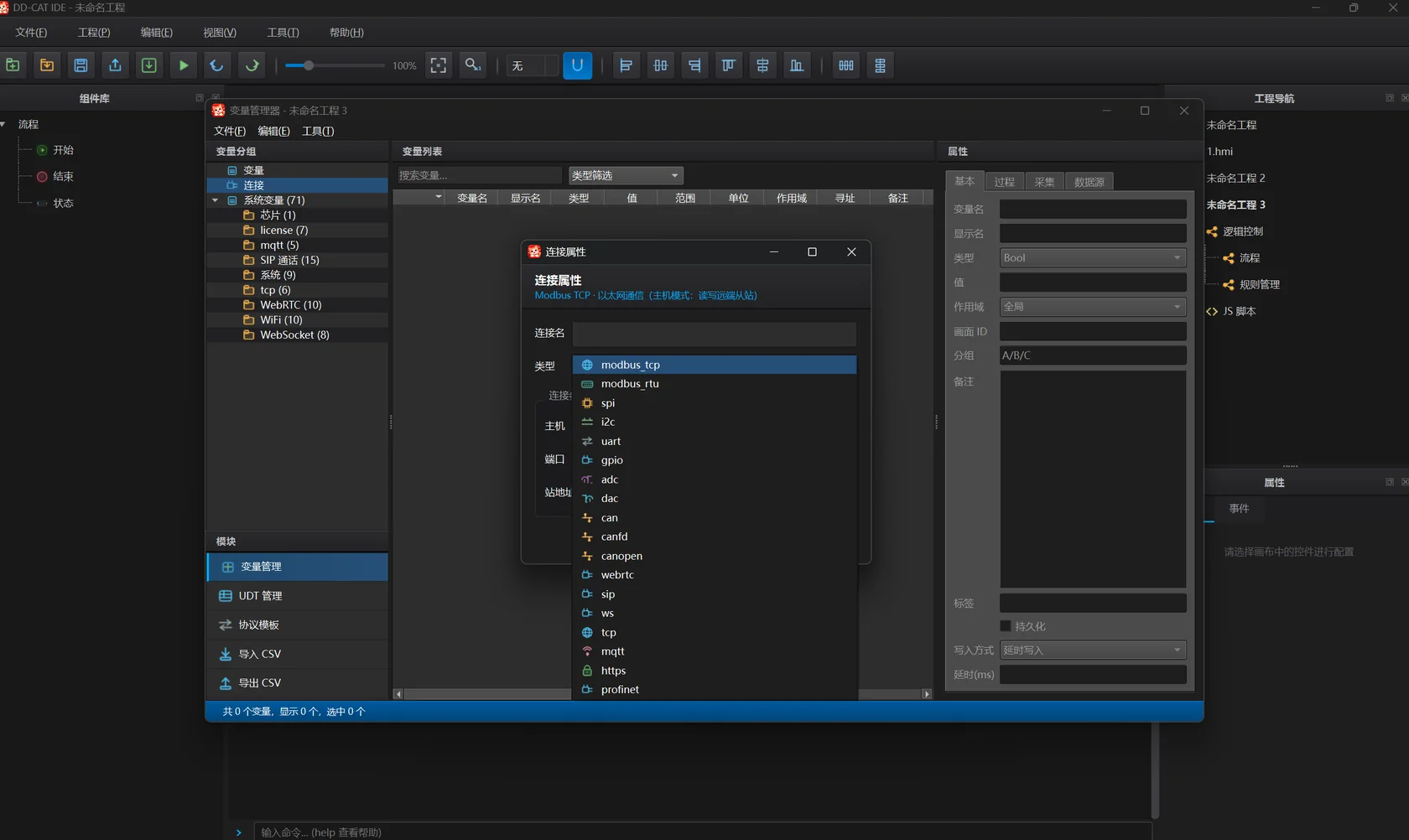

Rule manager: trigger, condition, and action configuration

Connection config: fill parameters and connect

The designer’s connection dialog provides per-type parameter forms; firmware varsrc and the desktop simulator match by key — configure once, identical in simulation and on hardware.

Connection typeUse caseTypical parameters
mqttIoT cloudserver / port / user / pass
tcpTransparent transport (JSON-lines frames)host / port + key addressing
http / httpsREST fetch, JSON into variablesurl + json_path
websocketBidirectional channelhost / port
modbusModbus RTU / TCP master/slaveserial / baud / station ID
canopenCANopen busnode / object dictionary
profinetIndustrial Ethernetdevice name / IP
sipVoice/video calling / intercomserver / user / pass / audio codec
webrtcReal-time audio/video / data channelhost / port / token / AV toggles

Target

Embedded HMI firmware runtime

A chip/RTOS-agnostic MCU host that loads exported app packages to reproduce the designed UI and logic on real hardware.

Overall architecture

  • Chip/RTOS-agnostic MCU host; board capabilities injected through contract interfaces
  • Layered: L0 PAL/OSAL → L1 contract → L2 runtime → L3 UI backend → L4 app package
  • Strict C89 + industrial-grade safety subset (-Wall -Werror)
  • Four macro trim tiers: tiny/small/medium/full, down to display-free pure control

UI runtime

  • LVGL widget factory + screen manager; load the app package to reproduce the design
  • LVGL 9.1 / 9.5 / GUIX backends, one widget catalog across three ends
  • Full GB2312 Chinese font set, image decoding, MJPEG/network-stream video playback
  • Touch navigation, screen gestures, Pinyin input

Variable engine

  • Full pipeline: variable load / binding / rule execution
  • Rate storm gate: cascaded strict thresholds + wide source-write thresholds; mute and hold on exceed
  • Per-tick budget control for batch dispatch; VAR_STORM fault code propagated

Protocol stack

  • MQTT 3.1.1 client (QoS 0-1, wildcard subscriptions)
  • TCP transparent channel (JSON-lines frames, backoff reconnect)
  • HTTP/HTTPS fetch, WebSocket bidirectional channel
  • Modbus RTU/TCP, CANopen, PROFINET, local IO

Voice & video calling

  • SIP stack: RFC3261 four-state transaction machines + Timers A–K, digest auth
  • SDP offer/answer negotiation; G.711 fallback + high-quality Opus (bit-exact on both ends)
  • WebRTC: ICE-lite/STUN subset + SRTP (AES_CM_128_HMAC_SHA1_80) encryption
  • Camera DVP capture pushed straight to the peer; typical for video intercom/access control

Algorithm graph runtime

  • Generic descriptor-driven interpretation; fully declarative block definitions with fingerprint rejection
  • Motor control: FOC/SVPWM/SMO/SMC/HFI/PLL/MTPA
  • Digital power: Buck/Boost/LLC/PFC/DOB/DPCC
  • Hardware-decoupled: all peripheral interaction goes through the variable manager

Security & licensing

  • 1-Wire chip license token (LIC-CTA): unique chip key as trust anchor, anti-clone
  • Unauthorized = fail-closed; factory programming tool included
  • Three-level macro configuration for the license pin

App packages & OTA

  • A single .bin app package bundling UI + logic + algorithm graphs + hardware config + assets
  • Package load state machine + integrity check + four auto-matched capability tiers
  • OTA: filesystem staging → verify → switch-over, with rollback on failure

Pin configuration that truly drives hardware

Per-pin assignment in the chip view, color-coded across five states (free / assigned / peripheral / power-analog / conflict); board schemes auto-check conflicts. The config ships in the app package and firmware initializes pins as declared.

  • · Full peripheral coverage: GPIO / UART / ADC / DAC / CAN / CAN-FD / I2C / SPI / PWM / EQEP
  • · Peripheral capability bits come from the chip pack; new projects auto-filter

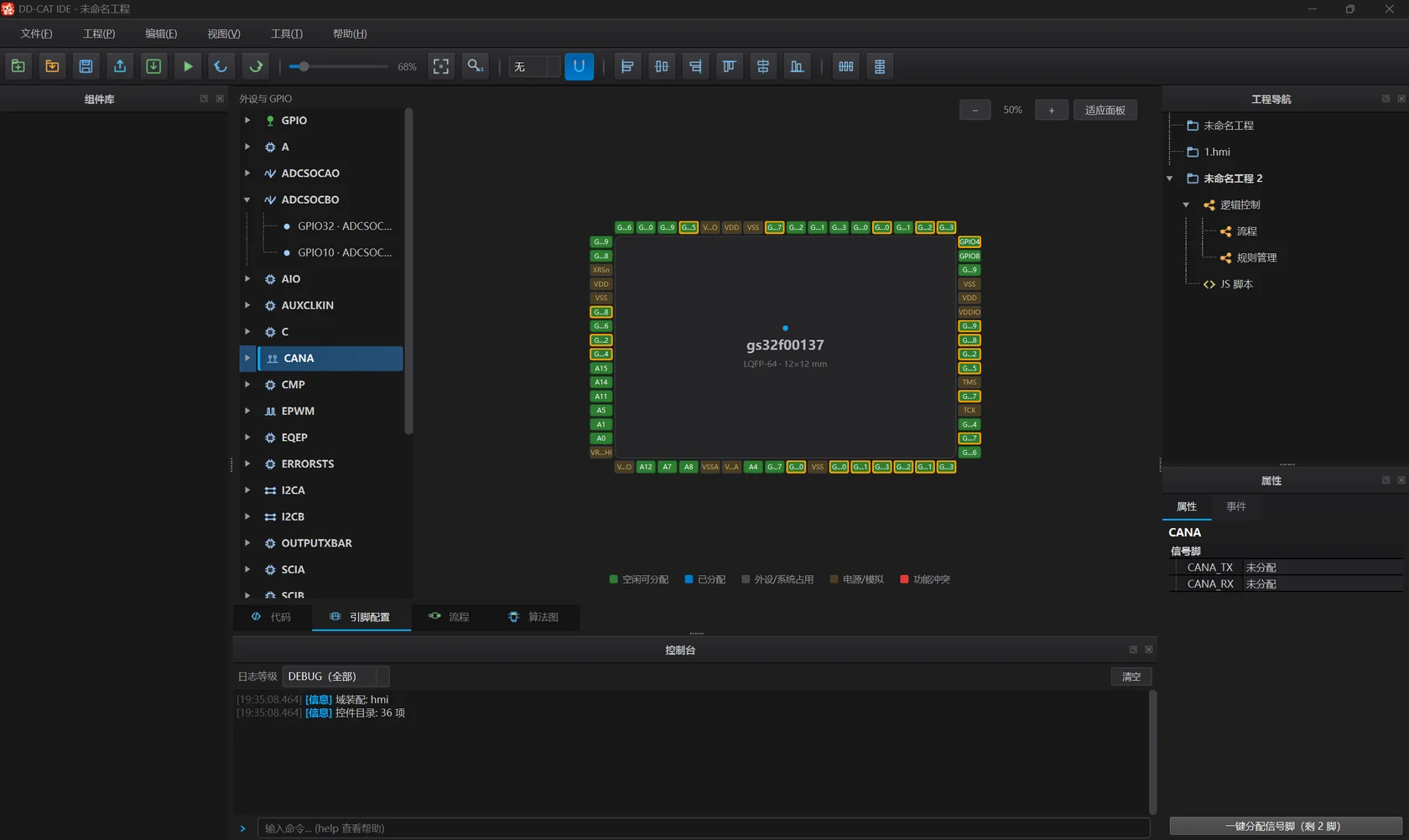

Pin configuration: chip pin assignment and peripheral function view
